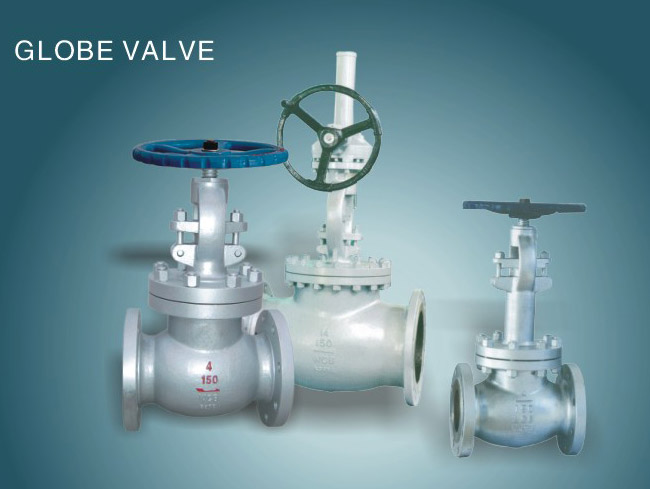

Description

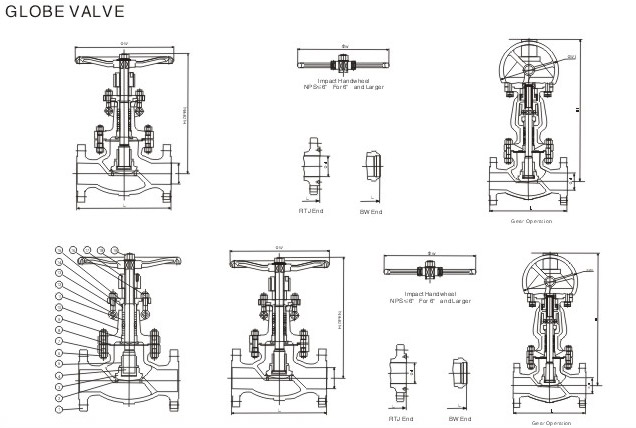

Parts and material list

Parts Number	Parts name	Materias
Parts Number	Parts name	WCB/Trim 1	WCB/Trim 5	WCB/Trim 8	CF8/304	CF8/316
1	Body	ASTM A216 WCB	ASTM A216 WCB	ASTM A216 WCB	ASTM A351 CF8	ASTM A351 CF8M
2	Seatring	A105+13Cr	A105+STL	A105+STL	ASTM A351 CF8	ASTM A351 CF8M
3	Stem	ASTM A216 WCB+13Cr	ASTM A216 WCB+STL	ASTM A216 WCB+13Cr	ASTM A351 CF8	ASTM A351 CF8M
4	Disc	ASTM A182F6a	ASTM A182F6a	ASTM A182F6a	ASTM A182F304	ASTM A182F316
5	Disc nut	ASTM A216 WCB	ASTM A216 WCB	ASTM A216 WCB	ASTM A351 CF8	ASTM A351 CF8M
6	Bonnet nut	ASTM A194 2H	ASTM A194 2H	ASTM A194 2H	ASTM A194 8	ASTM A194 8M
7	Bonnet nut	ASTM A193B 7	ASTM A193B 7	ASTM A193B 7	ASTM A193B 8	ASTM A193B 8M
8	Gasket	304sheet+ Graphite	304sheet+ Graphite	304sheet+ Graphite	304sheet+ Graphite	304sheet+ Graphite
9	Backseat bushing	ASTM A182F6a	ASTM A182F6a	ASTM A182F6a	ASTM A351 CF8	ASTM A351 CF8M
10	Bonnet	ASTM A216 WCB	ASTM A216 WCB	ASTM A216 WCB	ASTM A351 CF8	ASTM A351 CF8M
11	Packing	Graphite	Graphite	Graphite	Graphite	Graphite
12	Eyebott pin	ASTM A36	ASTM A36	ASTM A36	304ss	316ss
13	Gland eyebott	ASTM A193 B7	ASTM A193 B7	ASTM A193 B7	ASTM A193B 8	ASTM A193 B8M
14	Gland	ASTM A182F6a	ASTM A182F6a	ASTM A182F6a	ASTM A182F304	ASTM A182F316
15	Gland tange	ASTM A216 WCB	ASTM A216 WCB	ASTM A216 WCB	ASTM A351 CF8	ASTM A351 CF8M
16	Eyebott nut	ASTM A194 2H	ASTM A194 2H	ASTM A194 2H	ASTM A194 8	ASTM A194 8M
17	Stem nut	ASTM A439 D2	ASTM A439 D2	ASTM A439 D2	ASTM A439 D2	ASTM A439 D2
18	Hand wheel	Ductile Iron	Ductile Iron	Ductile Iron	Ductile Iron	Ductile Iron
19	Hand wheel nut	Carbon steel	Carbon steel	Carbon steel	Carbon steel	Carbon steel

Note:The chart above only lists out some common composition of steel globe valve parts.We may provide other different parts material compostion according to the customer's request or the actual valve working condition.

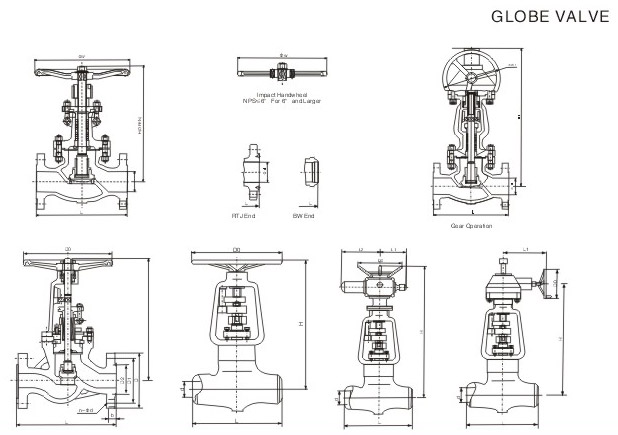

Class 150 & JIS 10K Cast Steel Globe Valve

Class	Size		Dimensions(mm)								Weight(Kg)
	NPS	DN	L			D	H	H1	W	W1	H.W	G.O
	NPS	DN	RF	RTJ	BW	D	H	H1	W	W1	H.W	G.O
150	1/2	15	108	119	108	13	182	-	100	-	3	-
	3/4	20	117	130	117	19	193	-	100	-	4	-
	1	25	127	140	127	25	217	-	100	-	5	-
	1¼	32	140	152	140	32	235	-	135	-	8	-
	1½	40	165	178	165	38	258	-	135	-	9	-
	2	50	203	216	203	51	330	-	200	-	19	-
	2½	65	216	229	216	64	360	-	250	-	27	-
	3	80	241	254	241	76	390	-	280	-	36	-
	4	100	292	305	292	102	445	-	300	-	53	-
	5	125	356	369	356	127	480	-	350	-	75	-
	6	150	406	419	406	152	520	556	350	310	94	126
	8	200	495	508	495	203	600	658	400	310	148	180
	10	250	622	635	622	254	773	805	450	460	242	291
	12	300	698	711	698	305	880	955	500	460	438	480

Class 300 & JIS 20K Cast Steel Globe Valve

Class	Size		Dimensions(mm)								Weight(Kg)
	NPS	DN	L			D	H	H1	W	W1	H.W	G.O
	NPS	DN	RF	RTJ	BW	D	H	H1	W	W1	H.W	G.O
300	1/2	15	152	164	152	14	185	-	100	-	5	-
	3/4	20	178	191	178	19	195	-	100	-	7	-
	1	25	203	216	203	25	220	-	135	-	10	-
	1¼	32	216	229	216	32	240	-	135	-	14	-
	1½	40	229	241	229	38	260	-	160	-	19	-
	2	50	267	283	267	51	385	-	200	-	25	-
	2½	65	292	308	292	64	420	-	200	-	42	-
	3	80	318	333	318	76	440	-	280	-	46	-
	4	100	356	371	356	102	515	-	350	-	74	-
	5	125	400	416	400	127	580	-	350	-	111	-
	6	150	444	460	444	152	660	690	400	310	165	195
	8	200	559	575	559	203	900	950	550	460	275	327
	10	250	622	638	622	254	950	990	600	460	400	452
	12	300	711	727	711	305	1030	1080	700	460	624	725

Class 600 & Class 900 Cast Steel Globe Valve

Class	Size		Dimensions(mm)								Weight(Kg)
	NPS	DN	L			D	H	H1	W	W1	H.W	G.O
	NPS	DN	RF	RTJ	BW	D	H	H1	W	W1	H.W	G.O
300	2	50	292	295	292	51	360	-	250	-	32	-
	2½	65	330	33	330	64	410	-	280	-	42	-
	3	80	356	359	356	76	465	-	300	-	63	-
	4	100	432	435	432	102	545	575	400	310	107	138
	5	125	508	511	508	127	625	660	500	310	185	215
	6	150	559	562	559	152	785	820	550	460	290	342
	8	200	660	664	660	200	930	960	650	460	540	645
900	2	50	368	371	368	51	480	-	350	-	55	-
	2½	65	419	422	419	64	520	-	350	-	68	-
	3	80	381	384	381	76	564	630	400	310	95	128
	4	100	457	460	457	102	685	720	450	310	160	210
	5	125	559	562	559	127	780	840	550	460	270	325
	6	150	610	613	610	152	950	1015	650	460	410	480

Class 1500 & Class 2500 Cast Steel Globe Valve

Class	DN		RTJ
Class	mm	in	L	D	D1	D2	b	n-ød	H	D0
1500Lb	65	2½	422	244	190.5	108.0	49.0	8-ø28.5	461	400
	80	3	473	267	203.2	136.5	55.7	8-ø32	554	450
	100	4	549	311	241.3	161.9	61.8	8-ø35	639	500
	125	5	676	375	292.1	193.7	81.1	8-ø41	780	460
	150	6	711	394	317.5	211.1	92.1	12-ø38	904	630
	200	8	841	483	393.7	269.9	103.0	12-ø44.5	1140	680
2500Lb	65	2½	514	267	196.9	111.1	66.7	8-ø32	492	400
	80	3	584	305	228.6	127.0	76.0	8-ø32	559	450
	100	4	683	356	273.0	157.2	87.3	8-ø41	715	560
	125	5	806	419	323.9	190.5	104.6	8-ø48	830	630
	150	6	927	483	368.3	228.6	120.7	8-ø54	1070	630
	200	8	1038	552	438.2	279.4	141.3	12-ø54	1300	680
