- Description

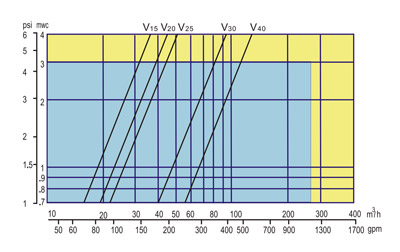

Flow-Pressure loss Diagram
Technical Parmeter
| V15 | V20 | V25 | V30 | V40 | |
| Material | nylon | nylon | nylon | PVC | PVC |
| The most working pressure | 0.7 | 0.7 | 0.7 | 0.6 | 0.6 |
| Way of interface | |||||
| flange | √ | √ | √ | ||
| BSP strew | √ | √ | √ | ||
| cementing | √* | √* | √* | √ | √ |
| Caliber of interface | DN40 | DN50 | DN65 | ø80mmID | ø110mmOD |
| Specifications | |||||
| L | 235 | 235 | 252 | 357 | 357 |
| H | 145 | 160 | 178 | 209 | 209 |
| Net weight**kg | 1.4 | 1.5 | 1.8 | 4.5 | 4.5 |
| Package | 6/package | 1/package | |||
- Working principal:the value is operated directly by the water coming through hermetic diaphragm.
- Specialty:simple structure,Corrosion resistance,high strength,in light weight,low price.
