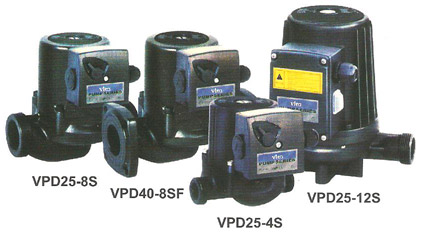

| MODEL Single phase |
POWER | CURRENT | INLET/OUTLET | SIZE LxBxH(mm) |
WEIGHT | DEMENSION (set) |
|
| Net weight | Gross weight | ||||||
| VPD20-4S | 62 | 0.28 | 1" | 130X130X130 | 2.7 | 2.9 | 0.004 |
| VPD25-4S | 62 | 0.28 | 11/2" | 130/180X130X130 | 2.7 | 2.9 | 0.004 |
| VPD32-4S | 62 | 0.28 | 2" | 180X130X130 | 2.7 | 2.9 | 0.004 |
| VPD20-5S | 84 | 0.35 | 1" | 130X130X130 | 2.7 | 2.9 | 0.004 |
| VPD25-5S | 84 | 0.35 | 11/2" | 130/180X130X130 | 2.7 | 2.9 | 0.004 |
| VPD32-5S | 84 | 0.35 | 2" | 180X130X130 | 2.7 | 2.9 | 0.004 |
| VPD20-6S | 100 | 0.45 | 1" | 130X130X130 | 2.7 | 2.9 | 0.004 |
| VPD25-6S | 100 | 0.45 | 11/2" | 130/180X130X130 | 2.7 | 2.9 | 0.004 |
| VPD32-6S | 100 | 0.45 | 2" | 180X130X130 | 2.7 | 2.9 | 0.004 |
| VPD40-5SF | 145 | 0.65 | SQUARE | 200X150X185 | 7.8 | 8.2 | 0.01 |
| VPD25-8S | 225 | 1.0 | 11/2" | 180X150X160 | 4.2 | 4.5 | 0.008 |
| VPD32-8S | 225 | 1.0 | 2" | 180X150X160 | 4.2 | 4.5 | 0.008 |
| VPD40-8SF | 225 | 1.0 | SQUARE | 200X150X185 | 8 | 8.3 | 0.01 |
| VPD25-12S | 270 | 1.3 | 11/2" | 220X160X200 | 6.5 | 7.0 | 0.012 |

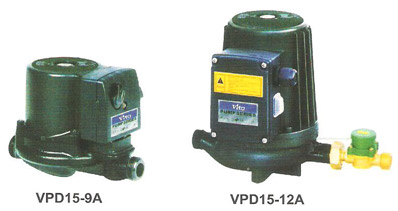

PIPELINE SCREENED ELECTRIC PUMP SERIES
| MODEL Single phase |
POWER P(W) |
RATED FLOW Q(m3/h) |
RATED HEAD H(m) |
CURRENT In(A) |
VOLTAGE (V) |
FREQUENCY (Hz) |
INLET/OUTLET (mm) |
WEIGHT (kg) |
| VPD15-9A | 120 | 0.5 | 7.5 | 0.5 | 220 | 50 | 15 | 2.5 |
| VPD15-12A | 300 | 1.25 | 10 | 1.2 | 220 | 50 | 15 | 6.3 |
