Enlarge Image- Description
 |
 |
| MODEL Three phase |
IN POWER P1(W) |
CURRENT (3-380V) (A) |
CURRENT (1-220V) (A) |
ROTATED SPEED n(r/min) |

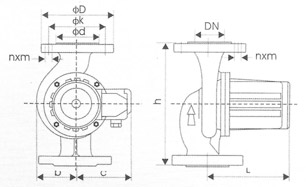

SIZE(mm) | WEIGHT Net weight(kg) |
||||||||
| D | K | d | DN | NXM | b | c | h | L | ||||||
| VPS40-3F | 160 | 0.39 | 0.78 | 1380 | 130 | 100 | 80 | 40 | 4X14 | 84 | 110 | 255 | 168 | 14 |
| VPS50-5F | 300 | 0.71 | 1.38 | 1390 | 140 | 110 | 90 | 50 | 4X14 | 94 | 109 | 300 | 202 | 19 |
| VPS65-5F | 550 | 1.36 | 3.1 | 1390 | 160 | 130 | 110 | 65 | 4X14 | 126 | 128 | 340 | 250 | 30.5 |

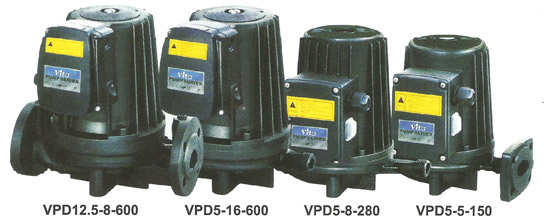

PIPELINE SCREENED ELECTRIC PUMP SERIES
| MODEL Single phase |
POWER P(W) |
RATED FLOW Q(m3/h) |
RATED HEAD H(m) |
RATED CURRENT n(r/min) |
ROTATED SPEED n(r/min) |
INLET/OUTLET FLANGE |
WEIGHT (kg) |
||
| Propose | Alternative | ||||||||
| VPD5-5-150 | 150 | 5 | 5 | 1.5 | 3000 | DN32 | DN40 | DN25 | 6.5 |
| VPD5-8-280 | 280 | 5 | 8 | 2.5 | 3000 | DN32 | DN40 | DN25 | 8 |
| VPD5-12.5-400 | 400 | 5 | 12.5 | 3.4 | 3000 | DN32 | DN25 | / | 12 |
| VPD8-8-400 | 400 | 8 | 8 | 3.4 | 3000 | DN40 | DN32 | / | 16 |
| VPD5-16-600 | 600 | 5 | 16 | 4.9 | 3000 | DN32 | DN25 | / | 13 |
| VPD8-12.5-600 | 600 | 8 | 12.5 | 4.9 | 3000 | DN40 | DN32 | / | 16.5 |
| VPD12.5-8-600 | 600 | 12.5 | 8 | 4.9 | 3000 | DN40 | DN50 | / | 16.5 |
