TWO-STAGE CENTRIFUGAL PUMPS
(Back To Back Impeller)
|

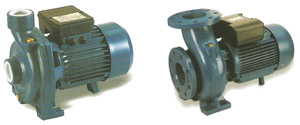

CENTRIFUGAL PUMPS
|
 |
 |
| MODEL |
POWER(HP) |
FLOWmax(M3/h) |
HEADmax(m) |
INLET/
OUTLET(inch) |
| 2VCP25/130 |
1.0 |
1.2-4.8 |
40-18 |
1¼"/1" |
| 2VCP25/140M |
1.5 |
2.4-9.6 |
42-21 |
1½"/1" |
| 2VCP160/160 |
2.0 |
2.4-7.5 |
66-28 |
1¼"/1" |
| 2VCP25/160B |
2.0 |
2.4-10.8 |
52-28 |
1½"/1" |
| 2VCP25/160A |
3.0 |
2.4-12 |
62-28 |
1½"/1" |
| 2VCP32/200C |
4.0 |
2.4-15 |
65-40 |
1½"/1" ¼" |
|
| MODEL |
POWER(HP) |
FLOWmax(M3/h) |
HEADmax(m) |
INLET/
OUTLET(inch) |
| VHF5B |
1.0 |
6-20 |
12-5 |
2"/2" |
| VHF5A |
1.5 |
6-20 |
14-6 |
2"/2" |
| VHF5BM |
1.5 |
6-20 |
17-6 |
2"/2" |
| VHF5AM |
2.0 |
6-20 |
20-10 |
2"/2" |
|
|
CENTRIFUGAL PUMPS
|
CENTRIFUGAL PUMPS(HIGH FLOW)
|
 |
 |
| MODEL |
POWER(HP) |
FLOWmax(M3/h) |
HEADmax(m) |
INLET/
OUTLET(inch) |
| VNF128B |
0.85 |
6-24 |
12-6.5 |
2"/2" |
| VNF128A |
1.0 |
6-30 |
13.2-5 |
2"/2" |
| VNF128AR |
1.5 |
6-36 |
13.8-3 |
2"/2" |
| VNF129A |
2.0 |
6-30 |
22-10 |
2"/2" |
| VNF130B |
2.0 |
12-66 |
14.5-5 |
3"/3" |
| VNF130A |
3.0 |
12-72 |
18-6 |
3"/3" |
|
| MODEL |
POWER(HP) |
FLOWmax(M3/h) |
HEADmax(m) |
INLET/
OUTLET(inch) |
| VHF6C |
1.5 |
12-45 |
11-3 |
3"/3" |
| VHF6B |
2.0 |
14-50 |
12-3 |
3"/3" |
| VHF6A |
3.0 |
14-55 |
15-6 |
3"/3" |
| VHF6CR |
1.5 |
12-45 |
11-3 |
4"/4" |
| VHF6BR |
2.0 |
14-50 |
12-3 |
4"/4" |
| VHF6AR |
3.0 |
14-55 |
15-6 |
4"/4" |
| VHF7BR |
4.0 |
16-58 |
18-7 |
4"/4" |
|
|
CENTRIFUGAL PUMPS
|
CENTRIFUGAL PUMPS WITH OPEN IMPELLER
|
 |
 |
| VGA/1A |
VHF7AR |
|
| MODEL |
POWER(HP) |
FLOWmax(M3/h) |
HEADmax(m) |
INLET/
OUTLET(inch) |
| VCP158-2 |
1.0 |
2.0-5.4 |
34-25 |
1"/1" |
| VCP130 |
0.5 |
0.6-4.5 |
19-16 |
1"/1" |
| VCP150 |
1.0 |
0.6-5.4 |
26-21 |
1"/1" |
| VCP158 |
1.0 |
2.0-4.8 |
31-25 |
1"/1" |
| VCP170 |
1.5 |
1.8-5.7 |
35-22 |
1¼"/1" |
| VNF170M |
1.5 |
3-9.6 |
33.5-19 |
1¼"/1" |
|
| MODEL |
POWER(HP) |
FLOWmax(M3/h) |
HEADmax(m) |
INLET/
OUTLET(inch) |
| VGA/1A |
1.0 |
3-13.2 |
16-5 |
1½"/1½" |
| VHF7AR |
5.0 |
32-100 |
16-6 |
4"/4" |
|
