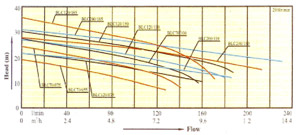

Performance curves
 |
- Motor
- 2-pole induction motor
- Three-phase: 380V/50Hz
- Single-phase: 220V/50Hz
- Single-phase with thermal protector(Thermal protector for three phase motor are available on request)
- Insulation class B or F
- Protection IP 55
- Continuous duty
|

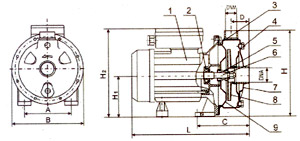

Installation Structure
 |
1.Motor
2.Bearing
3.O-ring
4.Plug
5.Mechanical Seal |
6.Pump shaft
7.Pump casing
8.Impeller
9.Pump cover |
|
- Application:
- non-flammable or non-explosive clear water without abrasive or fibre and not aggressive to stainless steel.
- Pure water or drinking water bottling
- Air-condition or cooling system,industrial washing and other especial application.
- Operation Conditions:
- Liquid temperature: +5ºC~+60ºC
- Ambient temperature up to 50ºC
- Max.working pressure 8 bar
|
| Model |
Power P2(W) |
A |
B |
C |
D |
H |
H1 |
H2 |
L |
DNA |
DNM |
(Kg) |
Packing size(mm) |
Qty/20 |
| 220V/50Hz |
380V/50Hz |
| BLC70/055 |
BLC70/055T |
550 |
140 |
213 |
138 |
47 |
222 |
110 |
242 |
313 |
1¼ |
1 |
12.5 |
360x245x280 |
1152 |
| BLC70/075 |
BLC70/075T |
750 |
140 |
213 |
138 |
47 |
222 |
110 |
242 |
313 |
1¼ |
1 |
13 |
360x245x280 |
1152 |
| BLC70/100 |
BLC70/100T |
1000 |
140 |
213 |
138 |
47 |
222 |
110 |
242 |
313 |
1¼ |
1 |
15.5 |
360x245x180 |
1152 |
| BLC120/075 |
BLC120/075T |
750 |
140 |
213 |
138 |
47 |
222 |
110 |
242 |
313 |
1¼ |
1 |
13.5 |
360x245x280 |
1152 |
| BLC120/110 |
BLC120/110T |
1100 |
140 |
213 |
138 |
47 |
222 |
110 |
242 |
313 |
1¼ |
1 |
15.5 |
385x245x280 |
1080 |
| BLC120/150 |
BLC120/150T |
1500 |
150 |
234 |
140 |
49 |
240 |
120 |
251 |
337 |
1¼ |
1 |
18.5 |
420x260x295 |
763 |
| BLC120/185 |
BLC120/185T |
1850 |
150 |
234 |
140 |
49 |
240 |
120 |
251 |
373 |
1¼ |
1 |
22 |
420x260x295 |
763 |
| BLC200/110 |
BLC200/110T |
1100 |
140 |
213 |
138 |
47 |
222 |
110 |
255 |
366 |
1½ |
1 or 1¼ |
16 |
385x245x280 |
1080 |
| BLC200/150 |
BLC200/150T |
1500 |
140 |
213 |
138 |
47 |
222 |
110 |
255 |
366 |
1½ |
1 or 1¼ |
19 |
420x260x295 |
763 |
| BLC200/185 |
BLC200/185T |
1850 |
140 |
213 |
138 |
47 |
222 |
110 |
255 |
366 |
1½ |
1 or 1¼ |
21.5 |
420x260x295 |
763 |
|
