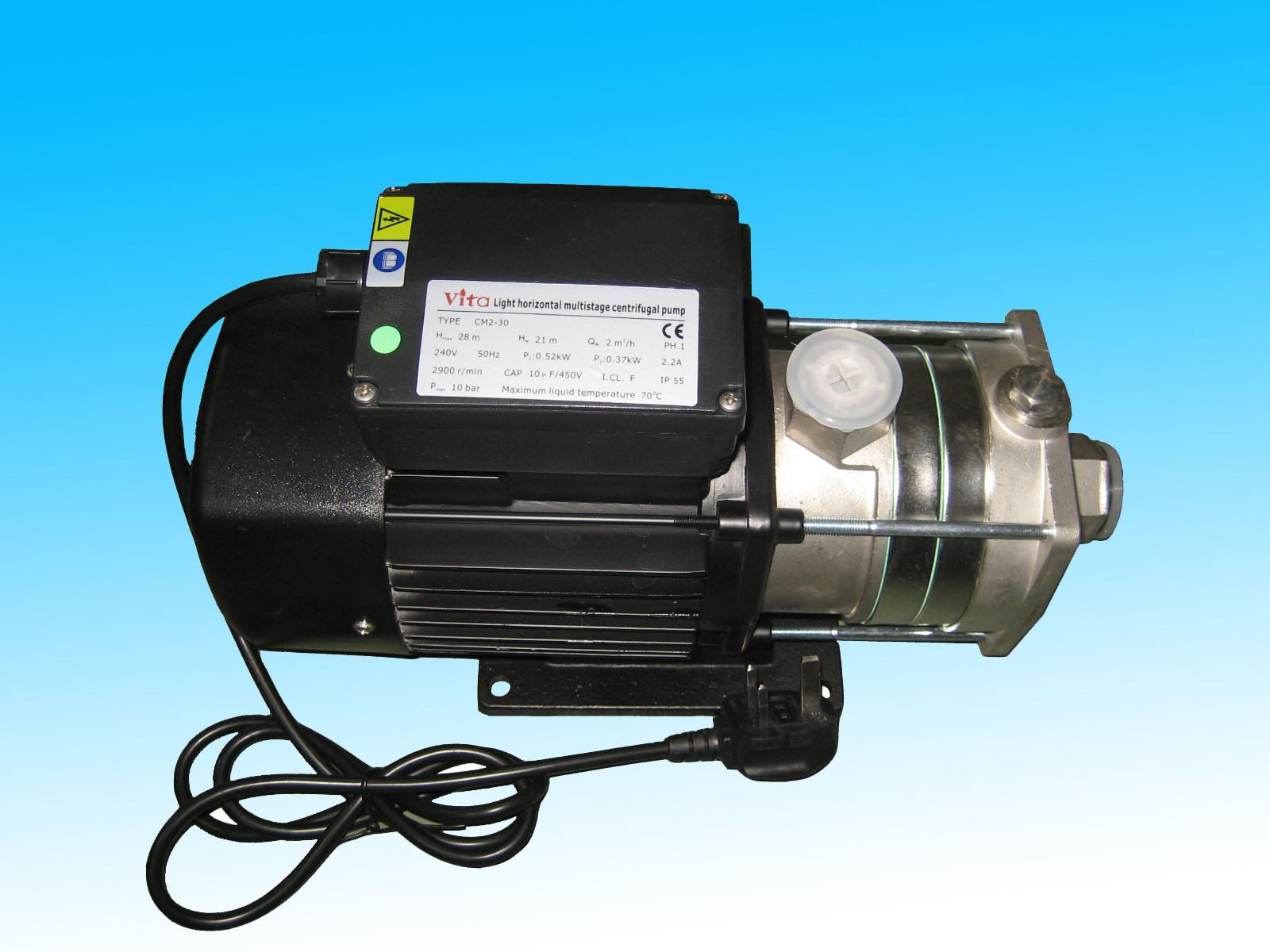

Product Name:CM(H)2 Series Pump
Category:CM Series Pump
Item No.:
Spec:
Packing:
  •  Description

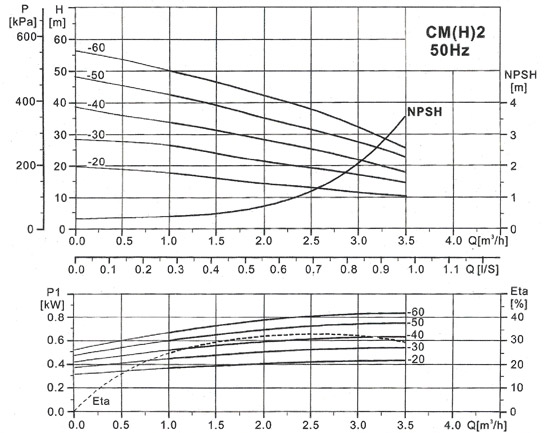

Performance curve





MODEL (Driving motor)
P1(kw)		 Q(m3/h) 0.5 1.0 1.5 2.0 2.5 3.0 3.5
Single Three Phase
CM(H)2-20 CM(H)2-20T 0.52 H(m) 19 18 16 14 13 11 10
CM(H)2-30 CM(H)2-30T 0.52 28 27 24 21 20 17 14
CM(H)2-40 CM(H)2-40T 0.75 36 35 32 28 26 23 17
CM(H)2-50 CM(H)2-50T 0.75 46 43 40 35 33 28 22
CM(H)2-60 CM(H)2-60T 0.96 54 50 48 42 38 32 25

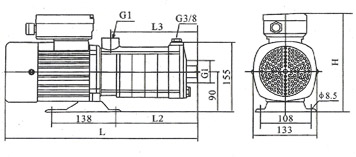

Installation sketch


Model Size(mm) Weight
(kg)
Single-phase three-phase
L L2 L3 H L L2 L3 H
CM(H)2-20(T) 326 90 100 210 326 90 100 190 8.5
CM(H)2-30(T) 344 108 118 210 344 108 118 190 9.5
CM(H)2-40(T) 362 126 136 210 362 126 136 190 9.5
CM(H)2-50(T) 380 144 154 210 380 144 154 190 9.5
CM(H)2-60(T) 398 162 172 210 398 162 172 190 10.5
