Performance curve
| MODEL | (Driving motor) P1(kw) |
Q(m3/h) | 2.0 | 4.0 | 6.0 | 8.0 | 10 | 12 | 14 | |
| Single | Three Phase | |||||||||
| CMH12-20 | CMH12-20T | 1.38 | H(m) | 20 | 19.5 | 19 | 18 | 15.5 | 13 | 10 |
| CMH12-30 | CMH12-30T | 1.85 | 31 | 30 | 29 | 28 | 23.5 | 20 | 15 | |
| CMH12-40T | 2.25 | 39 | 38 | 37 | 35 | 31.5 | 29 | 24 | ||
| CMH12-50T | 2.80 | 48.5 | 47.5 | 46 | 43.5 | 39 | 36 | 30 | ||
| CMH12-60T | 3.30 | 58 | 57 | 56 | 53 | 49.5 | 45 | 38 | ||

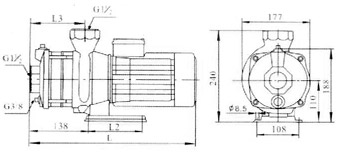

Installation sketch
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
