Product Name:BM8-9 series
Category:Horizonal Multi-Stage Pump
Item No.:
Spec:
Packing:
  •  Description


BM8-9X5T

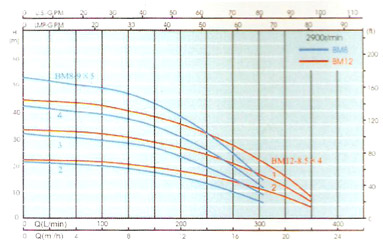

Performance curves

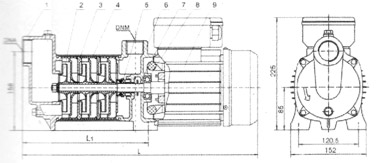

Installation Structure



1.Inlet section n
2.Impeller
3.Guide vane
4.Casing
5.Mechanical Seal		 6.Outlet section
7.Pump shaft
8.Bearing
9.Motor

Motor:
2-pole induction motor
Three-phase 380v/50Hz
Single-phase 220v/50Hz
Single-phase with thermal protector
Insulation class B or F
Protection IP54
Continuous duty

Applications:
Thin,clean,non-flammable and non-explosive liquid containing no solid granules and fibers.
Garden sprinkler, rain water collection
Pressure boosting of tank
Air-conditioning and cooling sytem, industrial washing and other special applications.

Operation Conditions:
Liquid temperature form +5ºC~+60ºC
Ambient temperature up to 50ºC
Max. Working pressure 16 bar





Model Power
P1(kW)		 L L1 DNA DNM W(Kg) Packing size
(mm)		 Qty/20º
220V/50Hz 380V/50Hz
BM8-9X2 BM8-9X2T 1.1 435 213 G1½ G1¼ 20 455X170X250 1494
BM8-9X3 BM8-9X3T 1.1 474 252 G1½ G1¼ 21 495X170X250 1377
BM8-9X4 BM8-9X4T 1.5 513 290 G1½ G1¼ 22 535X170X250 1260
  BM8-9X5T 2.2 552 329 G1½ G1¼ 21 575X170X250 1170
BM12-8.5X2 BM12-8.5X2T 1.1 435 213 G1½ G1¼ 21 455X170X250 1494
BM12-8.5X3 BM12-8.5X3T 1.5 474 252 G1½ G1¼ 23 495X170X250 1377
  BM12-8.5X4T 2.2 513 290 G1½ G1¼ 25 535X170X250 1260

220V/60Hz,110V/60Hz models are available on request
