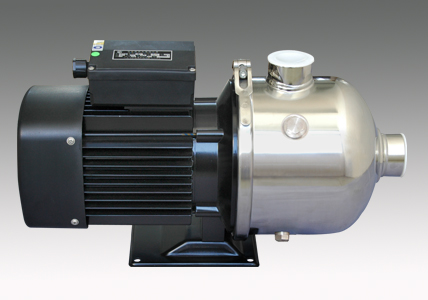

Product Name:CHL Series
Category:Multistage Pumps
Item No.:
Spec:
Packing:
  •  Description




APPLICATION
  Cooling water system
  Agriculture
  Domestic water supply
  Pesticide dosing system
  General industrial services
  Washing
  Environmental protection







PERFORMANCE RANGE
  Capacity:Q up to 20 m3/h
                     up to 80gpm
  Head:H up to 50 feet
  Temperature:T up to 120。C
                          up to 230 。F
  Speed: n 2900rpm or 3500rpm
  Power: P up to 3 kw
                 up to 4HP
FLOW RANGE:
  2,4,8,16T/Hour
DESCRIPTION
  Horizontal multistage monobloc design with stainless steel stamping,welding,impller and diffuser,
  three different type of choice,Single phase motor up to 2.2kw.Aluminum casing motor Class F
  and  IP55 are standard supply.Standard supply for liquid temperature up to 90。C,high temperature
  pumps are available on request.
