Enlarge Image- Description
- FUNCTION AND CHARACTERISTICS
- The pump acts the high strength industry fiber pastis as pump corpus, arranging the accurate mechanical type axis seal and high-quality stainless steel pump axis.
- The seal performance of the seal is good, single phase electric motor apparatus overcapacity open circuit sytem, can long hours continuously work. Main material and installation structure of each part of pump series are based on the meticulous care bolting and perfect design, have big run off,bear decay, waterproof flow bombardment, low noise and so on characteristics, it's shape exquisite beautiful,the installation is simple,and can add the additional splicing enzyme fitting
- LIMIT FOR THE USE
- Seafood marine products farming the salt water and the fresh water cyclic transformation and transmissibility
- The cyclic transformation pump water of Hotel and refectory, work mine enterprise joint catchment
- The water cyclic transformation of the garden, the swimming pool and the mulberry
- OPERATING LIMITS
- Fluid temperature up to +35ºC
- Maximum ambient temperature +40ºC
WARRANTY:ONE YEAR(according to our general sales conditions)

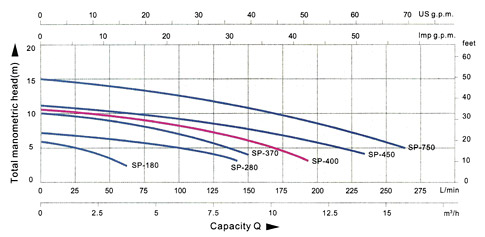

PERFORMANCE CHART AT n=2900r/min
| MODEL single phase |
POWER | INLET/OUTLET | MAX.FLOW(L/min) | MAX.HEAD(m) | G.W(kg) | PACKING DIMENSION (mm) |
QTY(set) | |
| (KW) | (HP) | |||||||

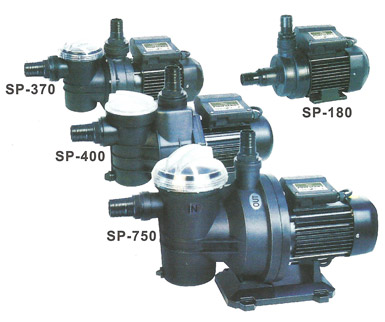

| SP-180 | 0.18 | 0.25 | 1"X1" | 60 | 6 | 4 | 300X150X185 | 2600 |
| SP-280 | 0.28 | 0.37 | 1½X1½ | 140 | 7 | 5.3 | 330X180X185 | 2100 |
| SP-370 | 0.37 | 0.50 | 1½X1½ | 150 | 10 | 6.5 | 430X180X185 | 1800 |
| SP-400 | 0.40 | 0.55 | 1½X1½ | 190 | 10 | 7 | 430X180X230 | 1400 |
| SP-450 | 0.45 | 0.60 | 1½X1½ | 230 | 11 | 10.3 | 540X260X350 | 550 |
| SP-750 | 0.75 | 1 | 1½X1½ | 260 | 15 | 11.5 | 540X260X350 | 550 |

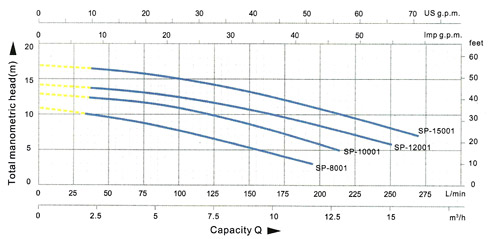

PERFORMANCE CHART AT n=2900r/min
| MODEL single phase |
POWER | INLET/OUTLET | MAX.FLOW(L/min) | MAX.HEAD(m) | G.W(kg) | PACKING DIMENSION (mm) |
QTY(set) | |
| (KW) | (HP) | |||||||
| SP-8001 | 0.45 | 0.6 | 1/2"X1/2" | 190 | 11.5 | 10 | 545X230X320 | 620 |
| SP-10001 | 0.55 | 0.75 | 1/2"X1/2" | 210 | 13 | 10.5 | 545X230X320 | 620 |

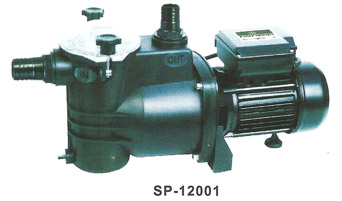

| SP-12001 | 0.75 | 1 | 1/2"X1/2" | 250 | 14 | 11 | 545X230X320 | 620 |
| SP-15001 | 0.9 | 1.2 | 1/2"X1/2" | 270 | 17 | 11.5 | 545X230X320 | 620 |
- OPERATING LIMITS
- Fluid temperature up to +35ºC
- Maximum ambient temperature +40ºC
-
